1. Proposed Ground Floor Cover Area - 24 X 24 = 576 SQFT (Plinth Area).

2. Total Area of Plot - 36’ X 36’ = 1296 SQFT

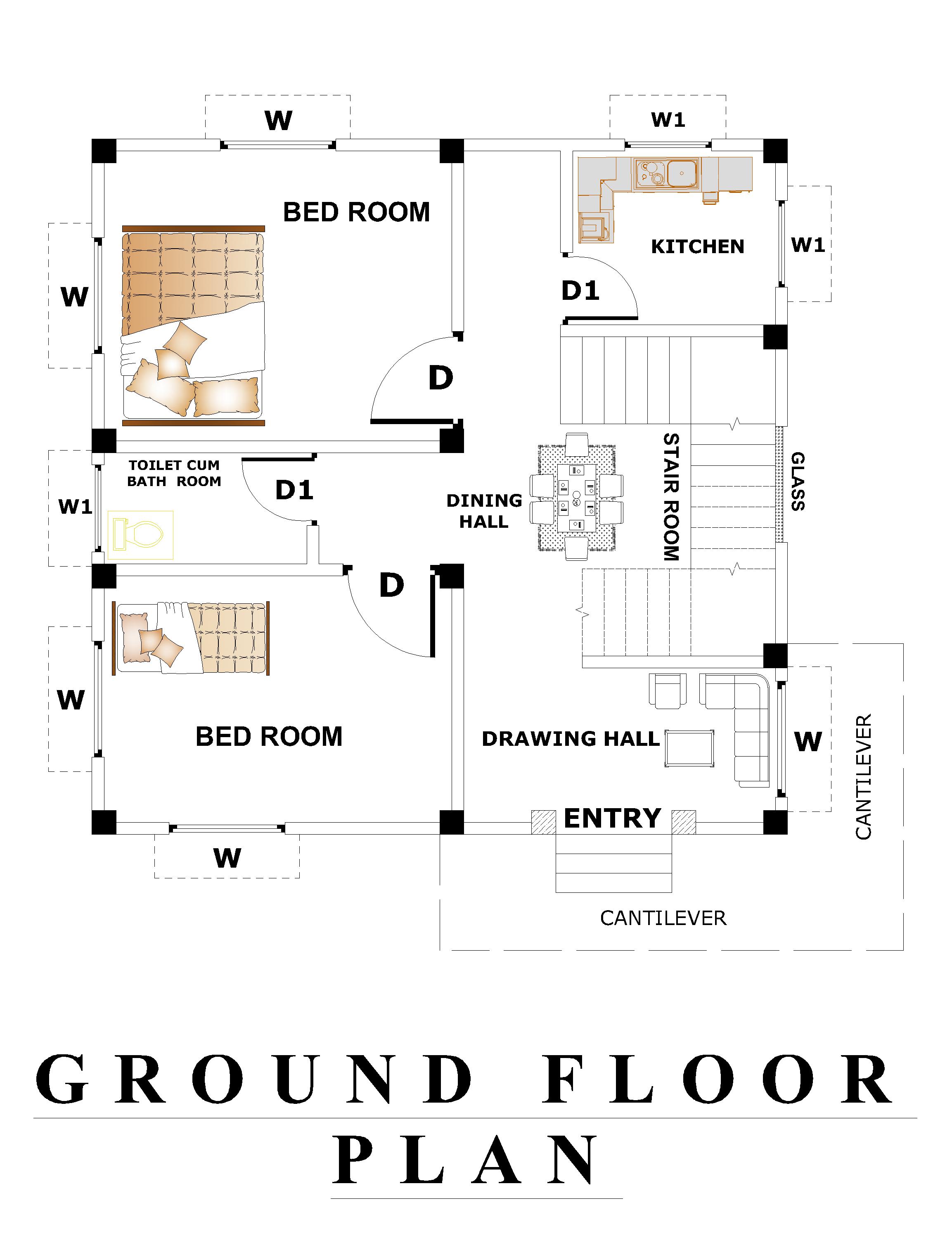

3. 2BHK Single Stored Residential Building Plan.

4. Entrance Door on The East (E) Side.

5. Wall Size - 250 mm (10”) TH & 125 mm (5”) TH.

6. Column Size - 250 mm X 250 mm (10” X 10”) - 12 NOS.

                            Bricks Column - 250 mm X 250 mm (10” X 10”) - 2 NOS.

7. Cantilever Roof - 90.33 SQFT.

8. Schedule Of Door - D - 1000 mm X 2100 mm (3’3” X 7’0”) - 2 NOS.

                                       D1 - 750 mm X 2100 mm (2’6” X 7’0”) - 2 NOS.

9. Schedule Of Single Door - SD - 1200 mm X 2100 mm (4’0” X 7’0”) - 1 NOS.

10. Schedule Of Window - W - 1200 mm X 1200 mm (4’0” X 4’0”) - 5 NOS.

                                                           W1 - 900 mm X 1200 mm (3’0” X 4’0”) - 4 NOS.

11. Schedule Of Grill - G - 1200 mm X 1200 mm (4’0” X 4’0”) - 1 NOS.

 Files Provided-

·         Ground Floor Plan Auto-Cad Drawing File 1 NOC.

·          Ground Floor Plan PDF File 1 NOC (A4 Size).

·         Ground Floor Plan PDF File 1 NOC (A3 Size).

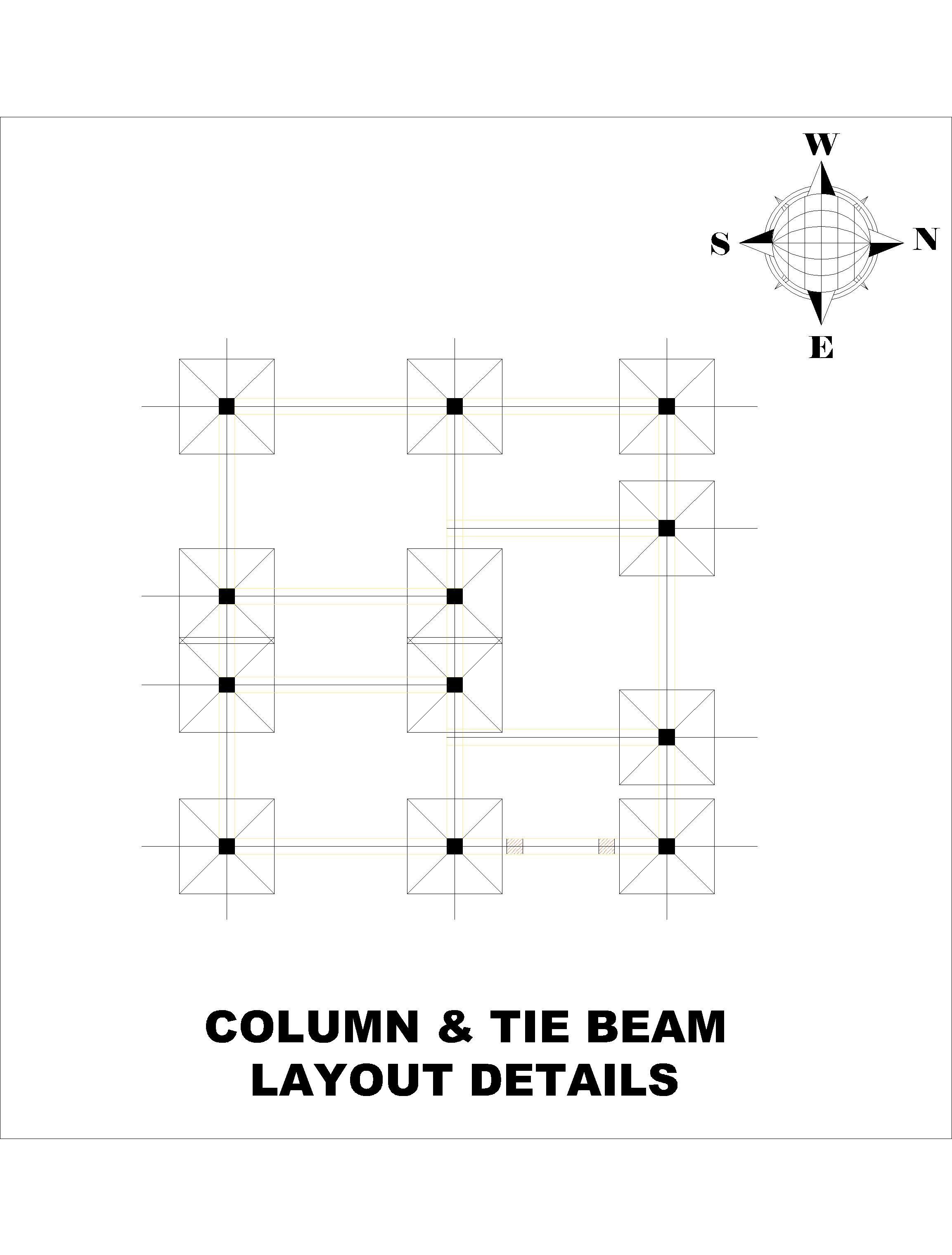

·         Column & Tie Beam Layout PDF File 1 NOC (A4 Size).

·         Column & Beam Foundation Details PDF File 1 NOC (A4 Size).

·         Sanitary Details PDF File 1 NOC (A4 Size).
